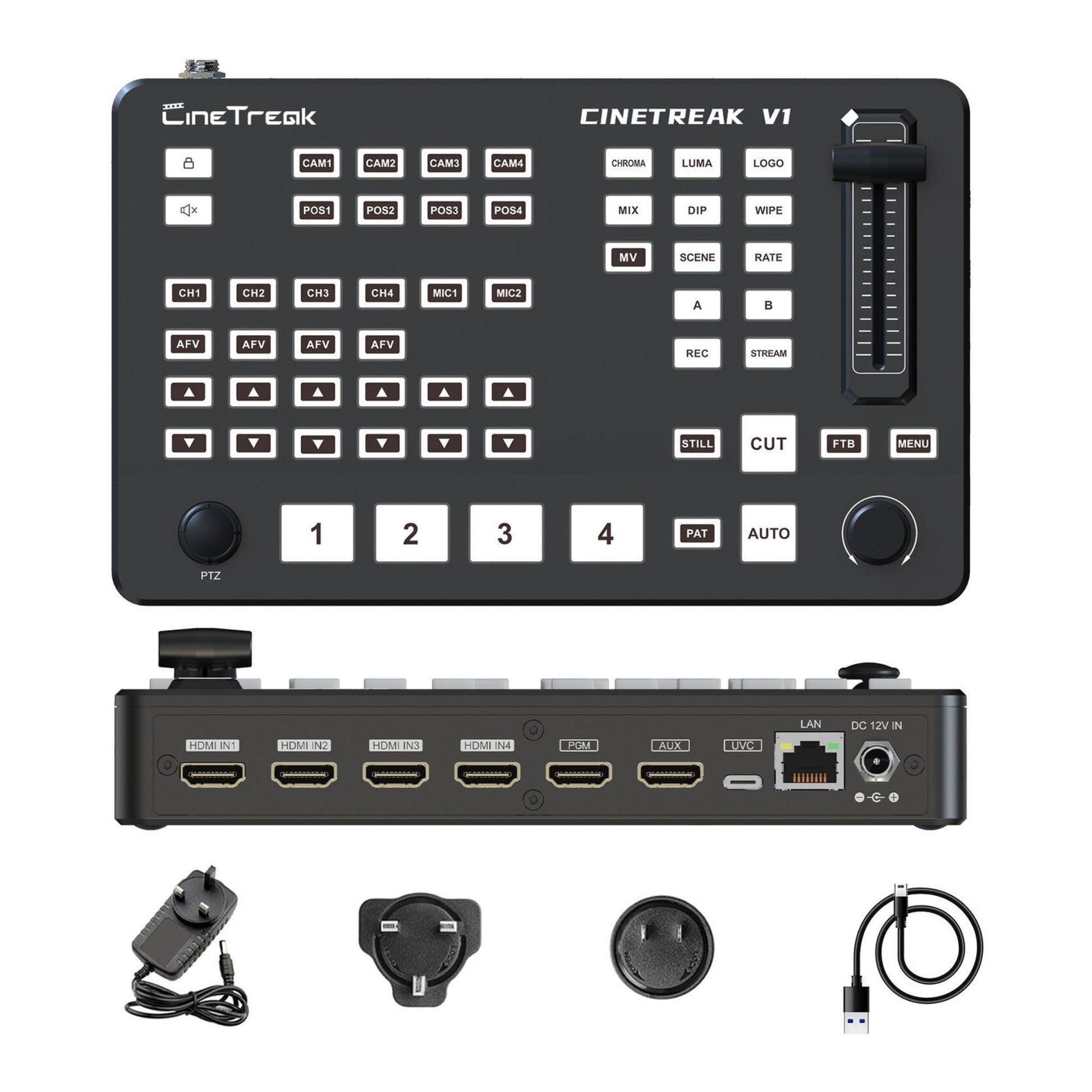

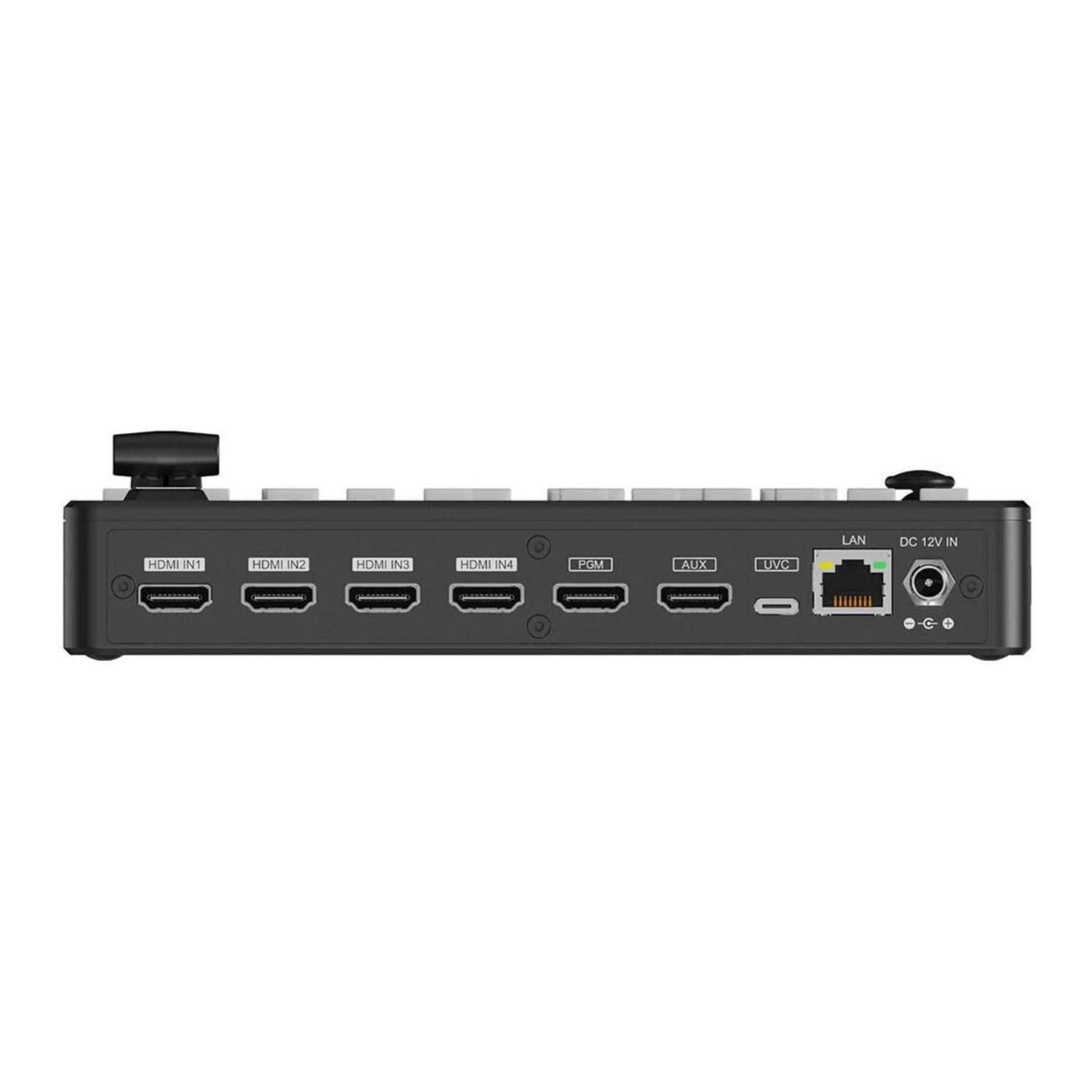

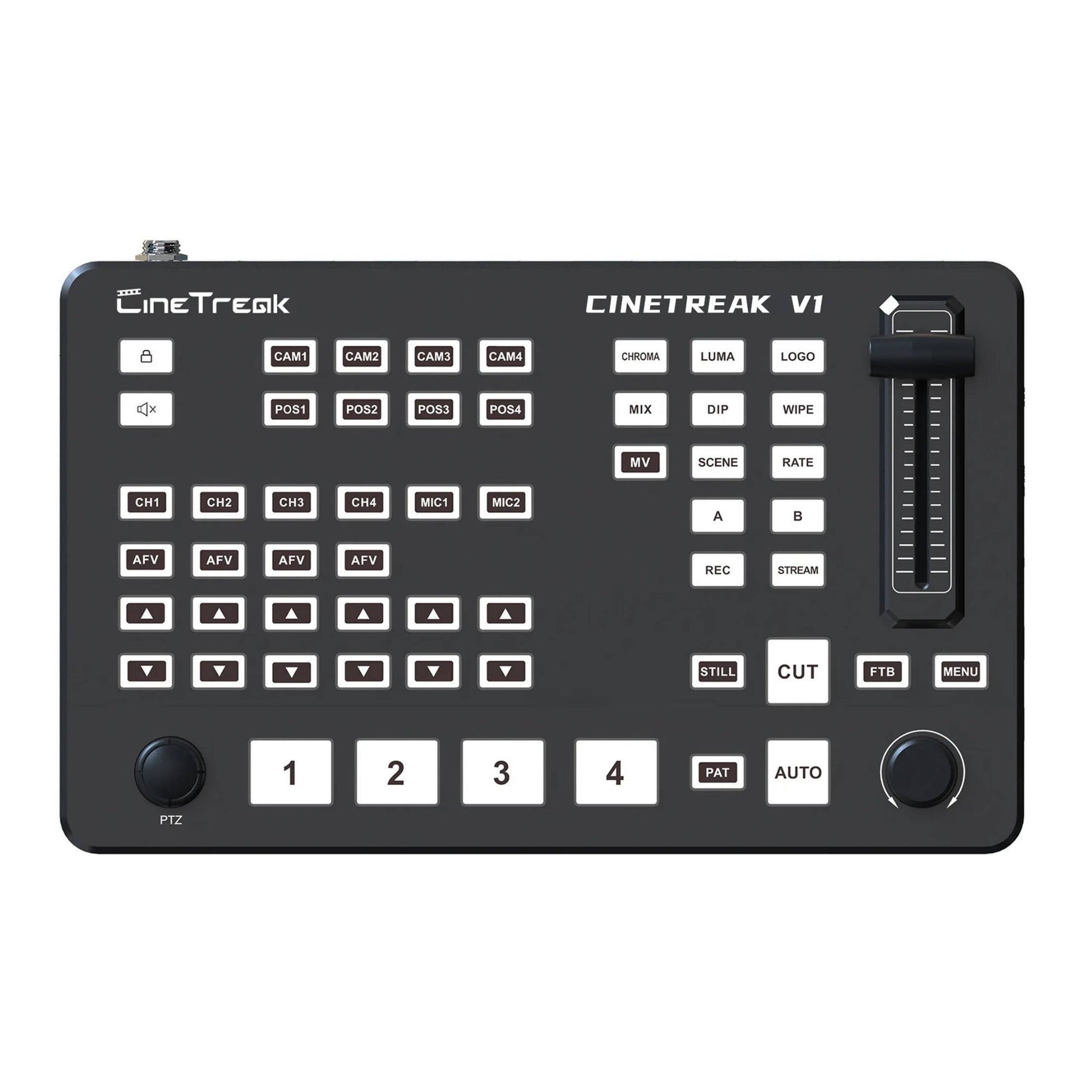

The CineTreak V1 4-Channel HDMI Video Switcher lets you stream and mix video in both horizontal and vertical orientations. It supports four 1080p60 HDMI inputs with embedded audio, plus HDMI program/preview outputs, LAN, USB-C UVC output, and USB-A recording.
Simultaneous Streaming
Stream to two RTMP addresses at once using USB-C or LAN. Features include H.264 encoding, luma/chroma keying, 32 transition effects, and VISCA control for up to four PTZ cameras.
Easy Recording and Broadcasting
Record directly to USB-A or SSD with the REC key and stream to multiple platforms with the STREAM key. Supports horizontal and vertical multiview for flexible live production.
PTZ Camera Control
Control up to four PTZ cameras with VISCA, adjusting position, focus, and color for professional multi-camera setups.
Audio Mixing

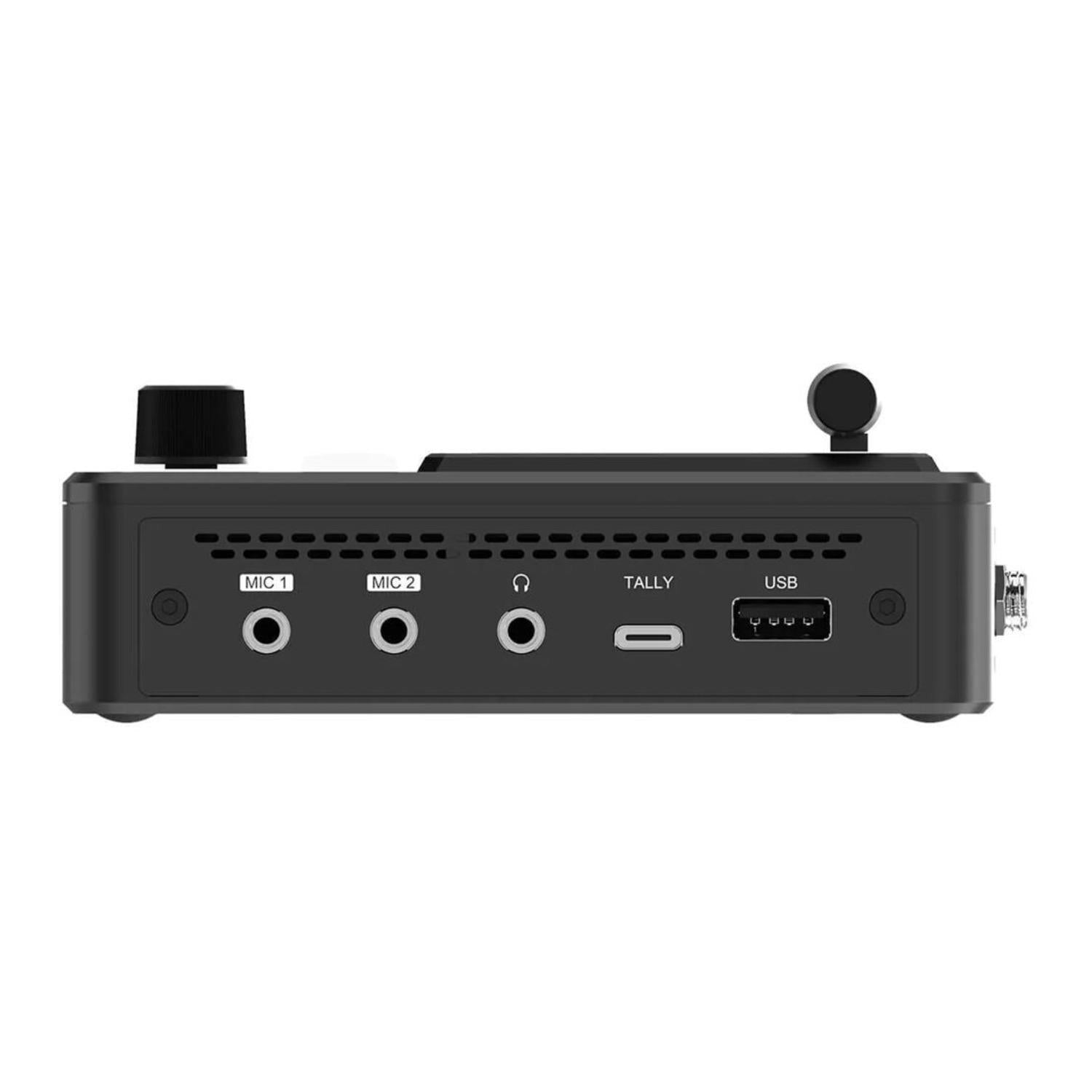

Mix up to four HDMI audio channels and two 3.5mm mic/line inputs with separate level, mix delay, and HDMI AFV controls for crisp, balanced sound.
